DC-Link Capacitor
Time:2016-12-29 13:29:46 Hits:

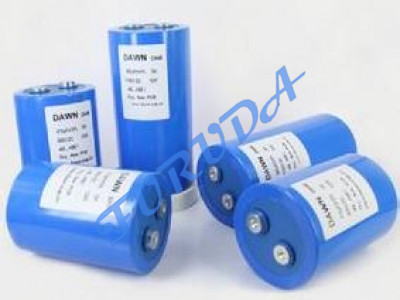

■ Product Introduction
JX-LL Series DC-link capacitors have many advantages, such as withstanding high voltage and current stressing, low-impedance, low inductance, low loss of capacitance, low leakage current, temperature for good performance, fast charge and discharge, long service life(About 100,000 hours), safety explosion-proof and good stability, non-polarized easy installation etc, which is widely used in the power electronics industry. The main function as follows:
1.In the inverter circuit is mainly for smooth filtering the output voltage of the rectifier.
2.Absorb high amplitude pulse current which is obtained from the “DC-Link” by the inverter, and prevent from generating high amplitude pulse voltage on the impedance of “DC-Link”, in order to keep voltage fluctuations of the DC-Link in the allowance range.
3.Prevent from overshoot of “DC-Link” voltage and effects of transient overvoltage on IGBT.
■Technical Requirements
●Operating temperature range: -40ºC～70 ºC(at rated voltage)
●Storage temperature range：-40ºC～85 ºC；
●Hot-spot temperature: 70 ℃ (at Imax)
●Maximum operating altitude: 3500m
●Rated voltage: up to 10KVDC；
●Rated capacitance: 100µF～5000µF( it can be adjusted on request by users)
● Capacitance tolerance: ±10 % /±5% ；
● Capacitance tolerance: ±10 % /±5%
● Withstand voltage: T-T (the electric strength of the dielectric): 1.5UnVDC/10s
T-C: (insulation level): 2Un+1000）VAC /10s
●Life expectancy：10000h
● Failure Rate:50FIT
