Quick Details

• Material: BOPP, polypropylene film polyester film
• Type: Metallized Film, metallized film
• Usage: Capacitors, capacitors
• Feature: For Capacitor, water soluble
• Hardness: Soft
• Processing Type: Multiple Extrusion
• Transparency: Opaque
• Place of Origin: Anhui, China (Mainland)
• Brand Name: CSF, Saifu, OEM
• Model Number: MPP/S-PP/RPP/RRPP,MPPA,MPPAZH,MPPAF
• Density: 0.91g/cm3
• Tensile Strength: >=2300Mpa
• Film Thickness: 3um-12um
• Film Width: 4.5mm-620mm
• Property: good tensile strength film

Packaging & Delivery

Packaging Details:	metalliaed capaciotr film 4-6roll /carton  40cartons/pallet
Delivery Detail:	7-15 days after payment received

buy high quality high temperature MPP film polypropylene film

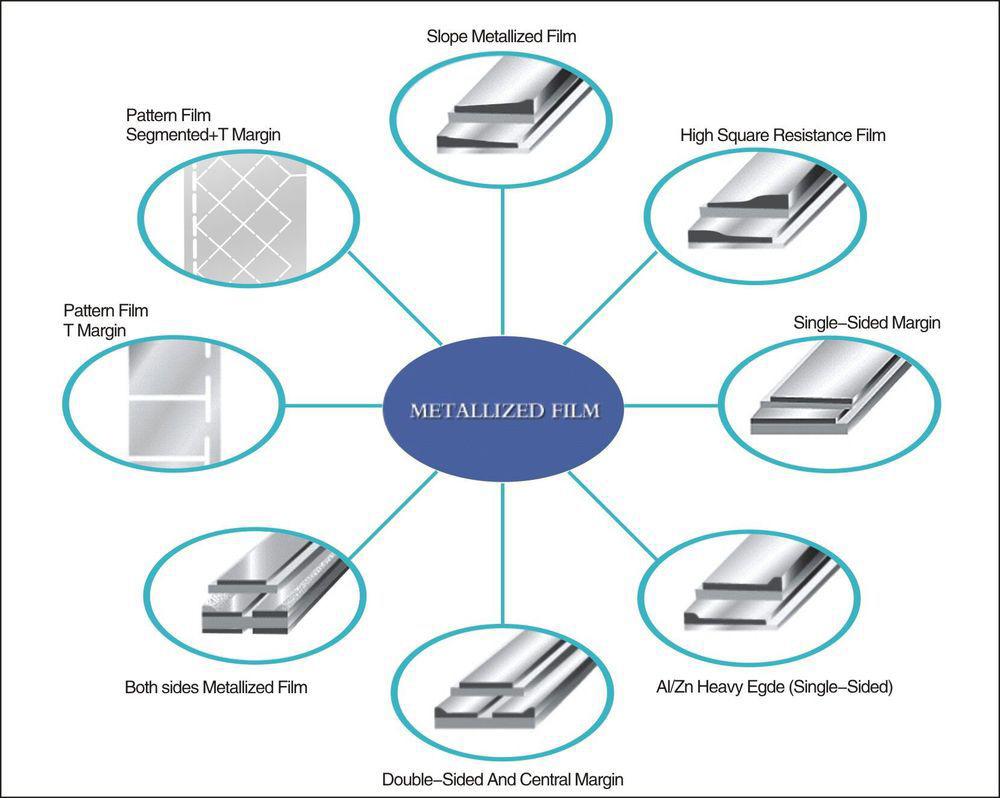

Types of Metallized Layer



Products

1.Aluminum metalized polypropylene film.



2.Aluminum metalized polypropylene safety film.

3.Aluminum-Zinc alloy metalized polypropylene film.

4.Aluminum-Zinc alloy metalized polypropylene film with heavy edge.



5.Aluminum metalized polyester film.

6.Aluminum-Zinc alloy metalized polyester film.

7.Aluminum-Zinc alloy metalized polyester film with heavy edge.



Cores

Material:Plastic



Width:Film Slit Width +/-0.2mm



Inner Diameter:75mm+1.0mm/-0.5mm



Roll Outer Diameter



For slit widths 4.0mm up:155+6/-15mm





For slit widths 10.0mm up:180+8/-18mm





For slit widths 25.0mm up:240+10/-20mm





For slit widths 50.0mm up:320+10/-40mm



Specifications of Metallized Film

Properties of MPP Film	Unit	Requirements
Density	g/cm3	0.905±0.005
Thickness	μm	3.8~15
Tensile Strength	MD(MPa)	≥100
Elongation at break	MD(%)	40~200
Heat Shrinkage	MD(%)	≤5(120℃, 10min) (120℃, 10min)
Break-down Voltage	V/  μm	≥350(23℃, DC)
Dissipation Factor	-	≤4X10-4   (20℃, 1KHz)
RC	ΩF	≥5X104





Packing of Metallized Film



1.The piled rolls are packed in plastic bad abd heat-sealed with esiccants after vacuum  removals





2.Labels inside the bages mark film class,type,thickness,width,free margin width and resistance





3.The bags are packed in carton cases





4.The carton cases are packed in wooden cases or reinforced carton

Storage of Metallized Film



1.Metalized film should be stored in its original packing until use.The temperature should be  controlled to 5-35 oC and humidity less than 85%  RH.



2.On exposure to moisture,the thin metalized layer is likely to be easily oxidized.Therefore,after the packing is opened,the rolls should be used as soon as possible.



3.It is recommended that the opened rolls be stored in temperature conditions of 15-25 oC



4.Metalized film kept sealed in the original packing and stored as described above is guaranteed according to the following conditions



5.Al metalized film:12 months from the delivered date



6.Al/Zn Alloy metalized film:As Zn is relatively unstable,preservation period depends on the resistance of the film



7.10 Ohms or less 6 months(from delivery date)



8.10 to 15 Ohms 3 months(from delivery date)



9.15Ohms 1months(from delivery date)
